IOLMaster — Setup Submenu.

The Setup submenu contains the following entries:

  • Date/Time
    Opens the Windows routine for setting the system clock.
  • Program settings/Program

    • Language: IOLMaster dialogues in German, English or other languages (changes require system restart).
    • Display of visual acuity: Decimal or Snellen. Entry of visual acuity in Patient Data dialog box.
    • Database: Storage time of data sets (5 ... 365 days). All figures between 5 and 365 are possible. 365 days are set at the time of delivery. Data records can be identified or sorted by name, first name... or by ID No.
  IOLMaster software
Optical Coherence Biometry

IMPORTANT: Please note that when switching from Name, First Name mode to ID Number, data records without an ID No. will not be listed (entry of an ID is not essential).

This also applies to switching from ID Number to Name, First Name, if a name was not previously entered.

  • Send data to PMS:

    • Choose old, if the connected office management system only allows import of data of interface software versions 1.01 ... 2.02 (patient data, measured values).
    • Choose new (requires option A plus), if the connected office management system can import all offered data according to interface software version 3.0 and higher.
    • COM speed provides a choice of standard transfer rates in kBaud.


IOL Master display





IOLMaster software display

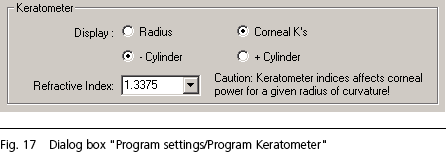

  • Keratometer display:

    • Radius or Corneal K's for IOL calculation.
    • - Cylinder or + Cylinder.
  • Refractive index: Entry of equivalent refractive index for conversion of corneal radii into corneal K's. Enter the refractive index implemented on your keratometer (refer to respective instruction manual).
  • Printing of IOL calculation data: Choose whether you wish to have the calculated IOL's of both eyes printed on a single page or only one eye per page. In addition, in this field you may enter the name of the clinic to appear on the printout of the IOL calculation. Select emmetropy IOL if desired.

IOLMaster Software Display

IOL Master software display

  • Program settings/Export
    (requires Option A plus)

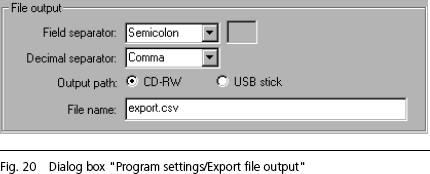

    Select export settings. Select the desired form of file printout Identification or Measurement values and the required printout path. The file name can be freely selected. By convention, the file name may not contain the separators ": / \ ? *". Data will be saved in (*.csv) text format (separator selectable) and may be read with other applications (e.g. MS Excel).

IOL Master display



IOL Master display




  • Program settings/User management

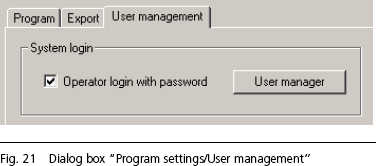

    • System login: IOLMaster and the patient database can be protected by means of a password (acc. to HIPAA).

      For this purpose, activate the option User login with password.

      A password must contain at least one character.

IOL Master display



IOL Master caution IMPORTANT: The option User login with password and the screen saver together with password protection should not be activated until a further user (see below) has been registered and his/her passwords entered.

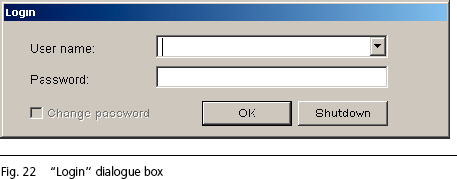

As soon as you have confirmed the new program settings with OK, a login dialogue will appear. From now on the IOLMaster can only be used by logging in with password. The default setting is user Admin with the password 0000 (4x zero) in the User Database. To change the password select the option Change password, enter your user name and old password and confirm with OK.

IOL Master



IOL Master caution   IMPORTANT: If you change the Admin password, you are advised to note down the new password, e.g. in the IOLMaster record book. The user management system cannot be accessed without the Administrator password.

In the event the password is lost, the IOLMaster can only be reset by Carl Zeiss Service.

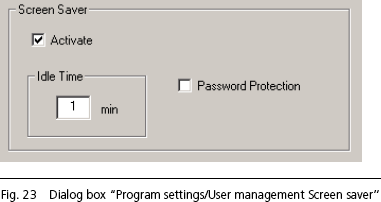

In addition, a screen saver with a freely adjustable interval can be activated. The screen saver appears if the IOLMaster has been inactive for longer than the set interval. This prevents unauthorized viewing of protected patient data (see note below).

IOLMaster Arizona NOTE: The Password protection option offers added protection. If this is activated, you will only be able to work with the IOLMaster and its database after logging on again with the password.

IOL Master software

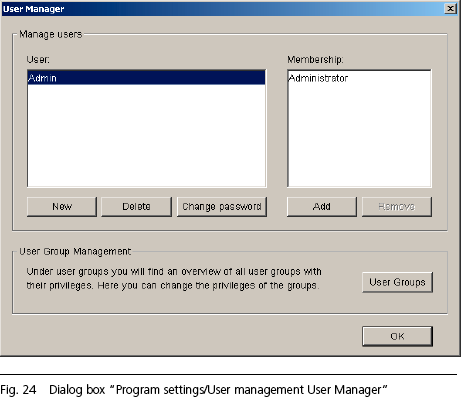

  • User Database: Click on the User Database button. The dialog box on the left-hand side of the User Management in the User Manager permits further users to be registered (with the New button), their password to be specified (Password) or users to be deleted (Delete).

IOL Master Software



Each user may be a member of one or more user groups. For this purpose, highlight the respective user. The user groups to which this user belongs are shown in the right-hand window Membership. The user can be assigned to one of the following user groups by clicking on ADD.
  • The Administrator has unrestricted access rights to User Management, the User Database and the Setup menu.
  • The Surgeon only has an access right to the respective tab in the User Database. This tab is created automatically when the user account is established in the User Database.
  • The Assistant has no right of access to the User Database.

All user groups may enter/rename patient data and perform measurements / calculate IOL's.

Users who are not members of any of the above user groups may work on the IOLMaster in the usual way, but they may not change any of the system settings.

To remove a user from a user group, highlight the name and click on REMOVE.

IOLMaster Arizona NOTE: The rights of the Surgeon and Assistant user groups in the User Group Management may be extended to include access to the IOLMaster Setup menu and the deletion of patient data.
  • Regional settings
    Opens the Windows routine for setting the system clock.
  • Printer
    Open Windows printer folder This function is only needed for:

    • Showing the printer queue
    • Displaying the properties of the installed printer. Here you will find advice on operating and maintaining the printer
    • Removing a printer which is no longer required.
  • SW option
    Installing or de-installing a software version.
  • Update
    To install a new software version from a CD:

    • Insert an update CD into the drive.
    • Click on Update to start the software update installation routine.
    • Follow the instructions shown on the screen. After installation, the system will be automatically shut down and restarted
    • Remove update CD from the drive. If the IOLMaster reappears in New Patient mode after restarting, the installation of the software update has been completed.
IOL Master Caution IMPORTANT: To switch the IOLMaster off, first press the EXIT icon and confirm with OK. Do not switch the IOLMaster off at the mains switch for as long as the cursor can still be moved on the display using the mouse pad. Operate the mains switch only when the cursor can no longer be moved.
  • Service
    For servicing purposes and password-protected.
IOL Master warning WARNING: Unauthorized persons may under no circumstances use the service password. The safety warranty for the medical device will otherwise become invalid!
