IOLMaster — Overview Mode.

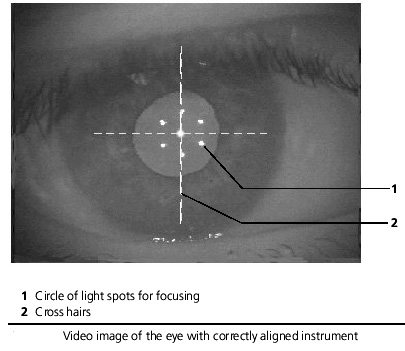

Overview Mode - Image Alignment Prior to Measurements

databaseO key, or the button with the magnifying glass icon, as pictured on the left. This is the Overview mode, which allows for coarse image alignment prior to taking measurements.

In this mode, the patient is aligned with the IOLMaster by using the joystick (see 1 below). Turn the control knob for vertical adjustment.

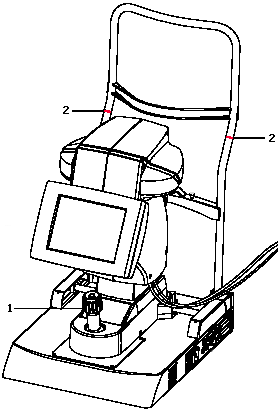

IOLMaster parts

Adjusting the device to the patient

The two red ring marks (2, above) on the side rails of the headrest are for rough vertical adjustment of the chin rest, (3, Fig. 3). The patient’s eyes should be level with these marks. Tell the patient to look steadily at the fixation point in the centre. Adjust the device-to-patient distance until the 6 light spots (as shown below) appear focused. If possible, the 6 light spots should be centred on the cross hairs and the edge of the pupil/iris structure should appear in focus. The position of the device in relation to the patient’s eye thus found serves as a starting point for fine adjustments to be made in the respective measurement mode. This should be done prior to taking Axial Length Measurements.
